Key Selling Points & Headline

50-Year Uncompromising Durability: The Ultimate Solution for Safe Water Transmission

In-depth Core Advantages

• Made exclusively from 100% virgin PE100 raw materials with zero recycled content.

Highly resistant to bacterial growth, scaling, and chemical corrosion, ensuring pure and safe drinking water.

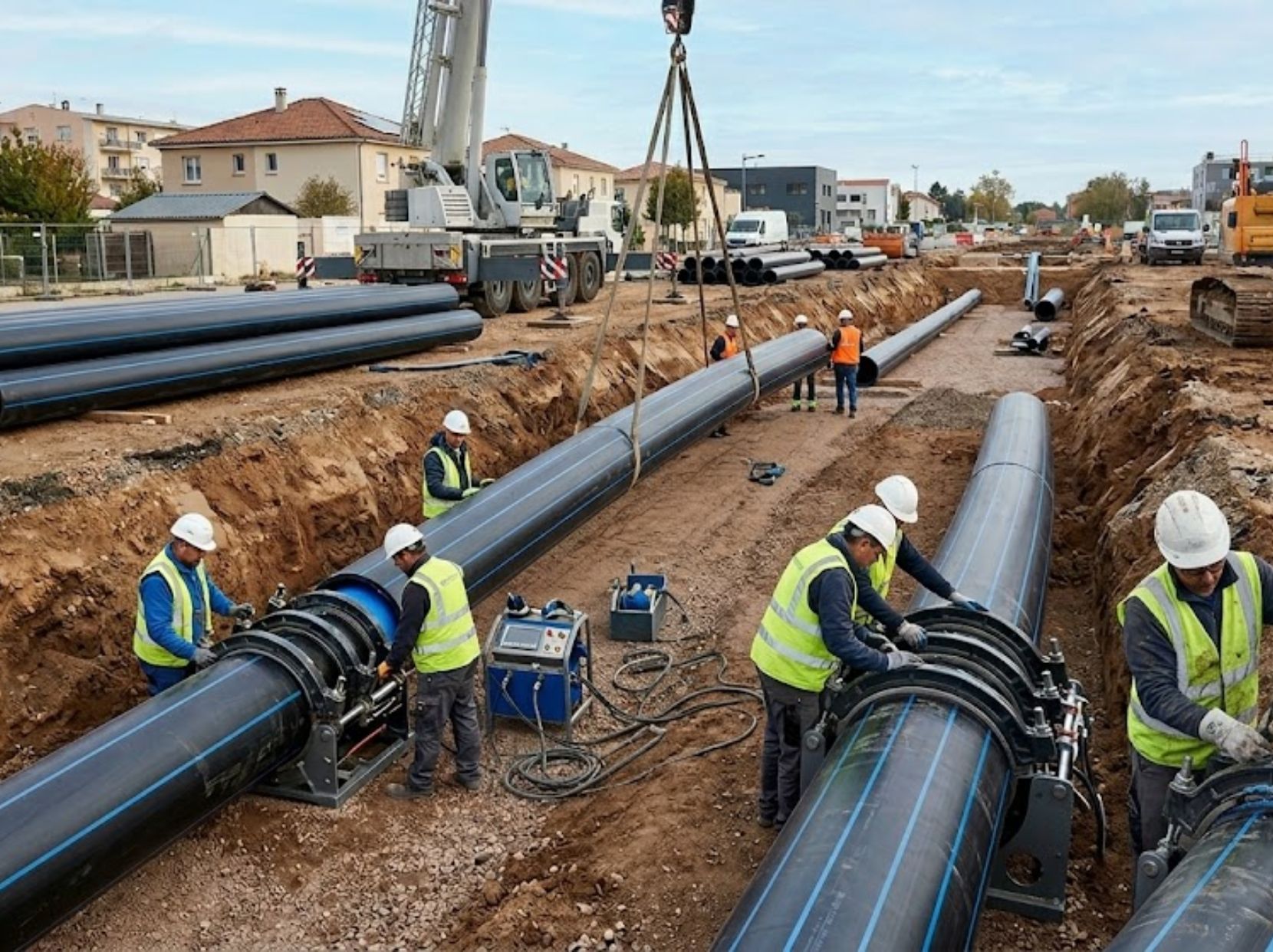

• Butt fusion and electrofusion techniques create joint interfaces that are stronger than the pipe itself. This seamless, homogeneous system completely eliminates potential leak points.

• High elongation at break gives the pipe superb impact resistance and flexibility. It easily adapts to soil

  settlement, seismic activities, and bending requirements, significantly reducing the need for elbow

  fittings.

• The ultra-smooth inner wall boasts an incredibly low friction coefficient. This minimizes flow

  resistance, enhances water delivery capacity, and lowers pumping energy costs.

Technical Specifications

Parameter	Technical Specifications	Remarks
Material	HDPE PE100 / PE80	100% Virgin Material
Standard	GB/T 13663.2-2018 / ISO 4427 / EN 12201	Meet international and multi-national industry access standards.
Outer Diameter	DN20mm - DN1200mm	Support custom engineering for large, medium and small diameters.
Nominal Pressure	PN0.6, PN0.8, PN1.0, PN1.25, PN1.6 (MPa)	SDR26, SDR21, SDR17, SDR13.6, SDR11
Color	Black with blue stripes or blue	Customization is available according to customer needs.
Joint Type	Butt/Electro/Socket Fusion	Fast and efficient, safe and error-free

Diverse Application Scenarios

• Municipal Water Supply Systems

• Agricultural Water-Saving Irrigation

• Industrial Chemical Fluid Transmission

• Trenchless Pipe Rehabilitation
