Product Overview

The embedded patch-type drip irrigation tape is the core component of the modern agricultural precise water-saving irrigation system. It is made by hot-pressing high-quality new PE raw materials with integrated patch-type drippers. Water droplets and water fertilizer are evenly, precisely and slowly transported to the root soil of crops, achieving efficient water and fertilizer saving, labor saving, increased yield, and is widely applicable to all scenarios such as fields, greenhouse sheds, orchards, vegetables, flowers, and economic crops.

Core advantage

Ultra-efficient water conservation, with a utilization rate exceeding 95%

Compared to traditional flood irrigation, it saves 30% - 50% of water, and compared to sprinkler irrigation, it saves more than 20%. The water droplets reach the root system directly, with zero evaporation, zero runoff, and zero waste.

Precise water and fertilizer integration, doubling the fertilizer efficiency

It can be integrated with water-soluble fertilizers, applying water and fertilizer simultaneously. The nutrients reach the roots directly, increasing the utilization rate by 100% and reducing fertilizer loss and soil pollution.

Super strong anti-blockage, stable and durable

The dripper is equipped with a wide labyrinth flow channel + self-filtering window. It can strongly resist blockage in turbulent flow conditions; combined with a 120-mesh water source filter, it will not clog over a long period of use and the water output is uniform.

Pressure compensation, strong adaptability to terrain

Select a pressure compensation type dripper. On flat land / sloping land / long-distance laying, it maintains a uniform flow rate within ±5% within the range, ensuring consistent water supply for crops of different heights.

50%+ labor saving, reducing overall costs

Light in weight, easy to lay, easy to recycle, the longest single roll is 2000 meters, with high laying efficiency; combined with automatic control, one person can manage hundreds of acres, significantly reducing labor.

Increase yield and quality, increase returns

Precise control of humidity and fertilizer, reducing diseases, promoting root growth, crop yield increases by 20% - 40%, uniform quality, earlier market entry, and higher selling price. Product Specifications

Pipe diameter: Φ16mm (mainstream), Φ12mm, Φ20mm

Wall thickness: 0.2mm (annual crops), 0.3mm (general use), 0.4mm, 0.6mm (perennial / buried)

Drip head flow rate: 1.0L/h, 1.38L/h, 2.0L/h, 2.7L/h, 4.0L/h

Drip head spacing: 10cm, 15cm, 20cm, 30cm, 40cm, 50cm (customizable)

Working pressure: 0.05–0.25MPa (50–250KPa)

Uniformity: CV < 5%, water discharge uniformity ≥ 85%

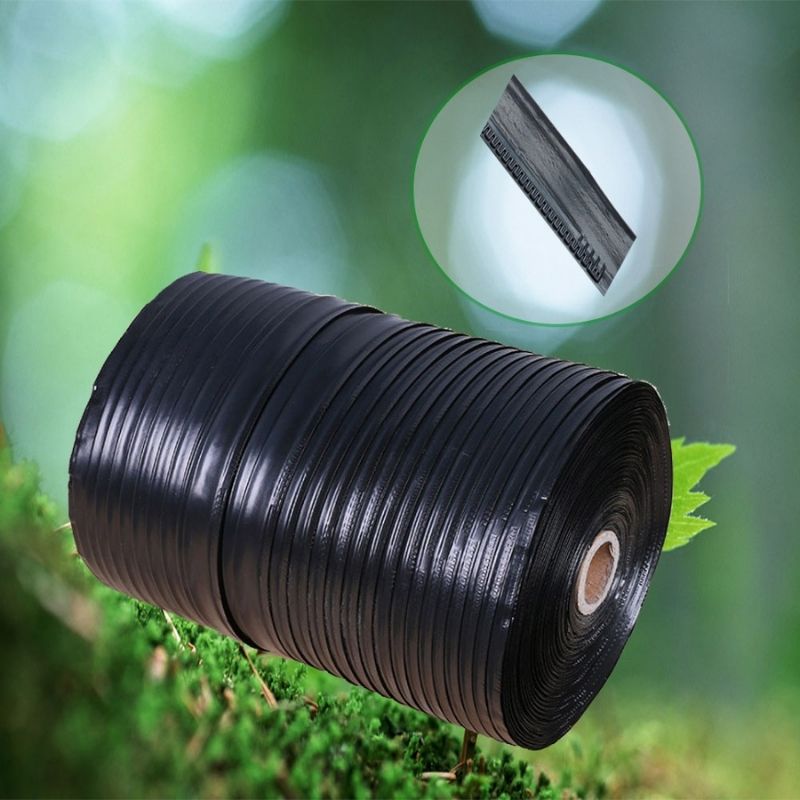

Roll length: 500m, 1000m, 1500m, 2000m (standard / customized)

Material: New high-density polyethylene (HDPE), with added UV resistance and anti-aging agents, weather-resistant, tensile-resistant, corrosion-resistant

Applicable temperature range: -5℃ to 60℃

Standardization and certification: GB/T 17187-2009 / ISO 9261

Technical features

Integrated insert patch process

The drip head and the body are thermally fused together, ensuring strong adhesion, no detachment, and no dripping; precise laser drilling for precise and stable water discharge.

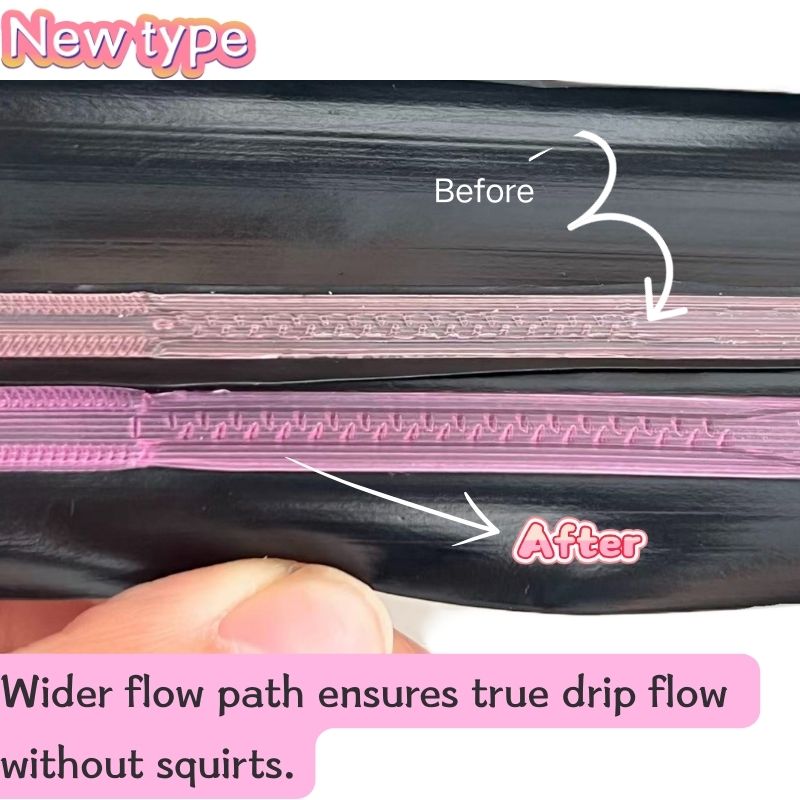

Maze turbulent flow channel design

Multiple levels of maze energy dissipation and turbulent state, resistant to silt, impurities, self-cleaning, significantly reducing the risk of blockage.

Wide-width filter window

The drip head is equipped with a large filter area window, effectively intercepting tiny particles, and combined with the field filtration system, it has a longer lifespan and less maintenance.

Double blue tracks / identification lines (optional)

The body has double-sided blue tracks, ensuring alignment during laying, preventing distortion, and easy recycling, making field construction more efficient.

UV resistance and anti-aging

Added imported UV-resistant masterbatch, not cracking or splitting even after 3–5 years of outdoor exposure, longer service life.

Applicable scenarios

Field crops: cotton, corn, wheat, sugar cane, potatoes, peanuts, soybeans

Vegetable base: tomatoes, peppers, cucumbers, eggplants, lettuce, onions, strawberries, watermelons

Fruit horticulture: apples, citrus fruits, grapes, bananas, mangoes, jujubes, blueberries, nurseries

Agricultural facilities: greenhouses, intelligent greenhouses, soilless cultivation, flower seedling cultivation

Cash crops: tea, Chinese herbal medicines, tobacco, goji berries, seedlings, forage grass

Special terrain: flat land, gentle slopes, hills, sandy land, saline-alkali land, arid areas
