Product Introduction

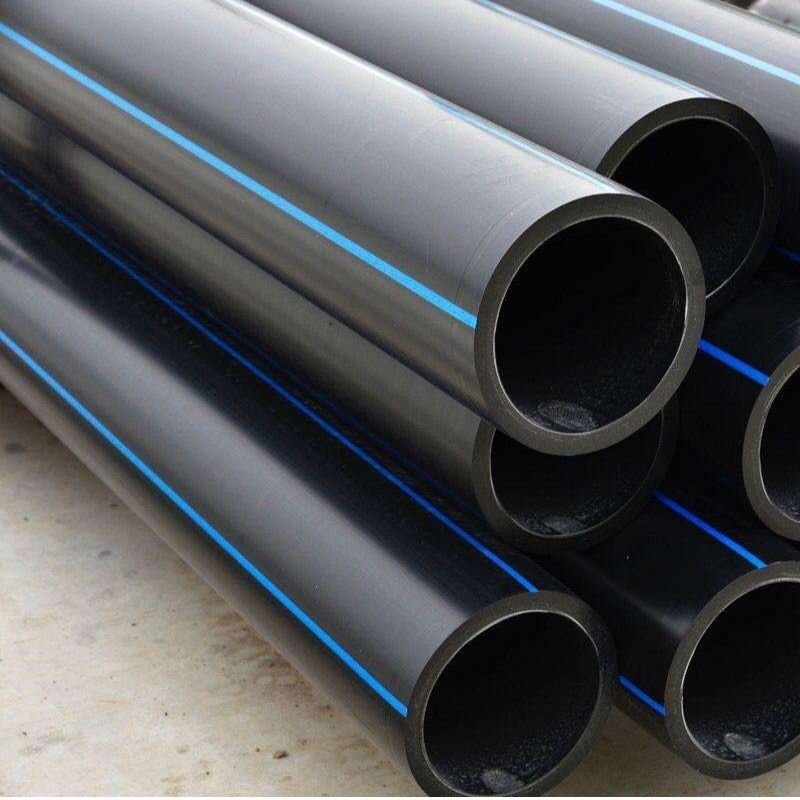

Our HDPE (High-Density Polyethylene) water pipes are manufactured using high-performance PE100 or PE80 raw materials. They are an ideal choice for modern water supply and drainage systems. Compared to traditional steel pipes and PVC pipes, they possess

outstanding flexibility, chemical stability, and impact resistance.

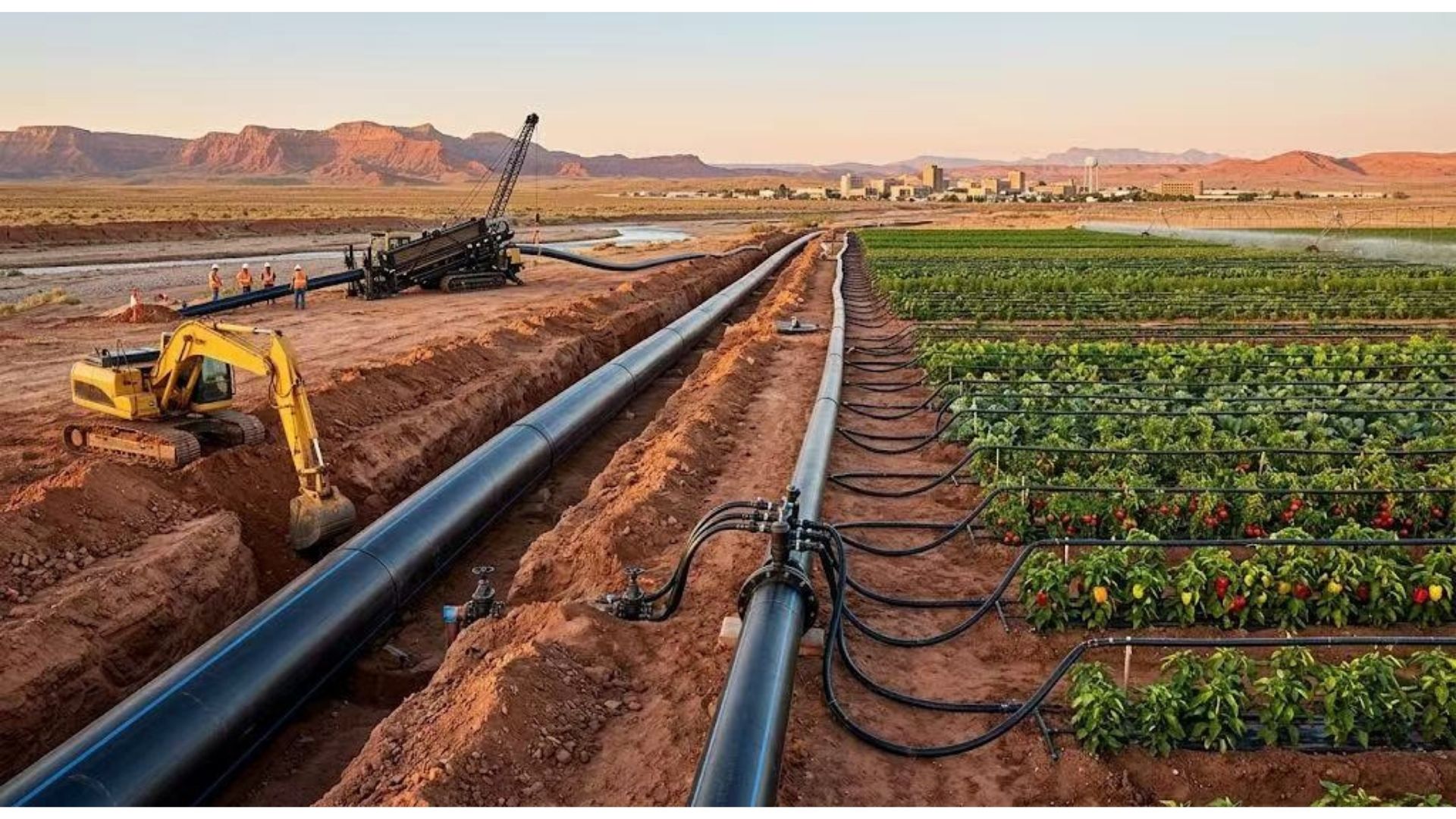

Whether used in complex municipal water supply networks, trenchless projects (pulling pipes), or large-scale agricultural drip irrigation systems, our PE pipes can provide leak-proof, maintenance-free long-term solutions. The products comply with ISO 4427 and other

mainstream international standards, ensuring the safety of drinking water.

Reliable Piping Solution for a Century.

ISO 4427 Certified Potable Water Pipe.

Technical Specifications

Item	Specifications
Material	100%Virgin PE100 or PE80
Diameter	DN2OMM-DN1200MM
Pressure Rating	PN6,PN8,PN10,PN12.5,PN16(SDR11,SDR13.6,SDR17,SDR21,SDR26)
Color	Black with blue stripes
Standard	ISO 4427,AS/NZS 4130,EN 12201,ASTM D3035
Connection	Butt Fusion, Socket Fusion , Electrofusion, Mechanical Joint
Lifespan	Over 50 Years under normal conditions

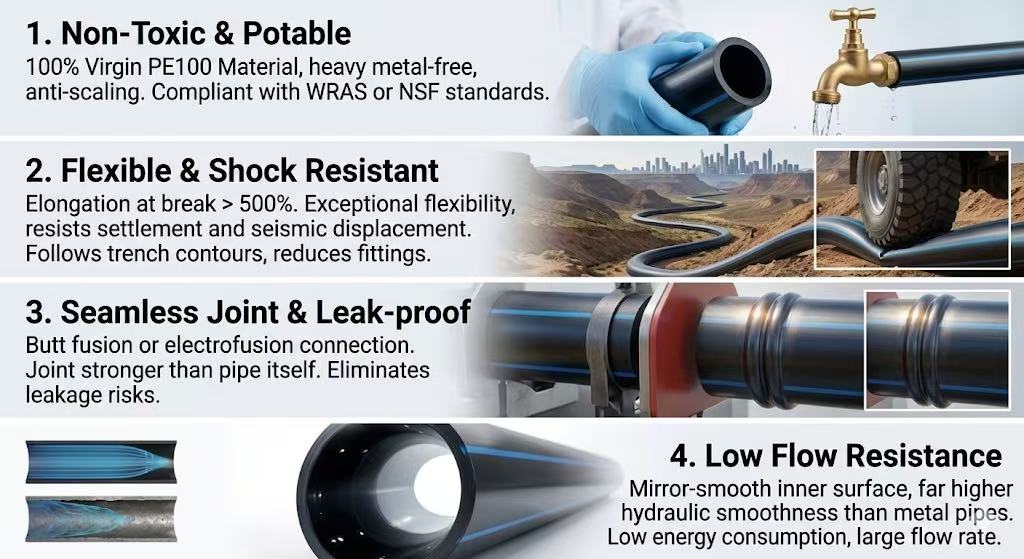

Key Product Features

1. Food-grade safety, health assurance (Non-Toxic & Potable)

• Picture suggestion: A pair of clean hands holding a cut PE pipe, or a picture showing a water faucet directly connected to the PE pipe and flowing clear water.

• Copy: Using 100% natural PE100 material, without heavy metal additives, no scaling, no bacterial growth. Fully complies with

drinking water hygiene standards (such as UK WRAS or US NSF related standards), and is safe for drinking water transportation.

2. Excellent flexibility and shock resistance (Excellent Flexibility & Shock Resistance)

• Picture suggestion: A long PE pipe being laid in the wild following the terrain, or a picture showing the test of the PE pipe quickly restoring its original shape after being crushed by a truck.

• Copy: The elongation rate of PE pipe fracture exceeds 500%. It has excellent flexibility and can adapt to uneven foundation settlement and displacement caused by earthquakes. When laid underground, it can follow the natural curvature of the pipe trench, reducing the use of pipe fittings and reducing costs.

3. Seamless connection, absolutely leak-proof (Seamless Joint & Leak-proof)

• Picture suggestion: A close-up of the on-site butt fusion operation, showing the perfect weld ring formed at the connection point.

• Copy: Using butt fusion or electric fusion connection. The strength of the connection point is higher than that of the pipeline itself,

forming an integrated, seamless water supply network, completely eliminating water resource waste and leakage risks caused by aging joints.

4. Smooth inner wall, smoother water flow (Low Flow Resistance)

• Picture suggestion: A close-up of the mirror-like high gloss inside the pipe, clean and smooth.

• Copy: The hydraulic smoothness coefficient (Hazen-Williams coefficient) of the inner wall is much higher than that of metal pipes.

This means that under the same conditions, it can reduce water transportation energy consumption and provide a larger water output.

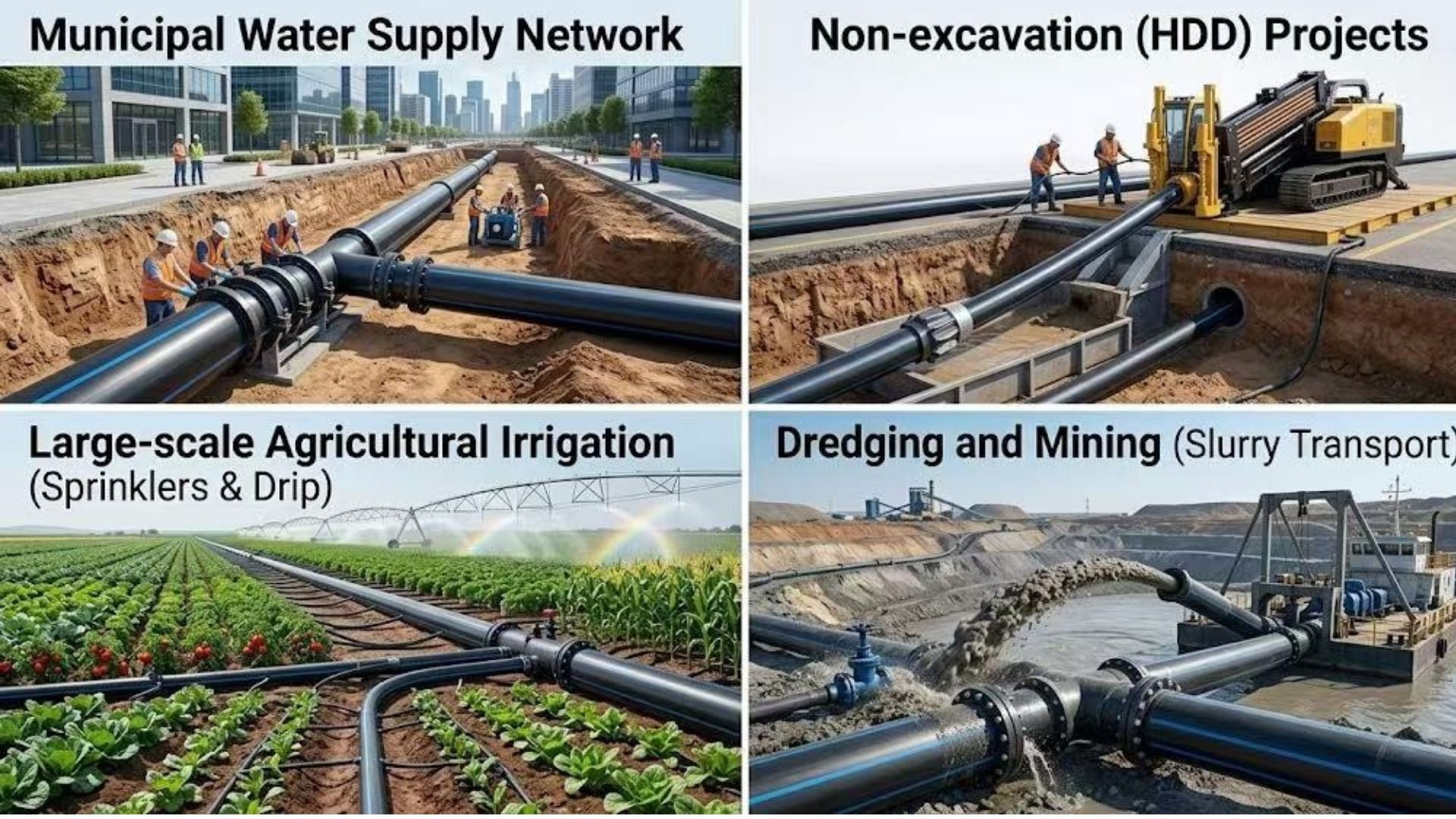

Application shows

• Urban Water Supply: Municipal Potable water network.

• Agricultural Irrigation: Drip irrigation, sprinklers.

• Non-excavation Projects: HDD (Horizontal Directional Drilling) lined pipe.

• Dredging & Mining: Transportation of slurry and wastewater.
