Product Introduction

Parameter	Specifications	Common Standards
Diameter	16mm/20mm	16mm
Wall Thickness	0.15mm-0.40mm	0.2mm(8mil)/0.3mm(12mil)
Drip Spacing	100/150/200/300mm	Customizable
Flow Rate	1.0-3.0L/H	1.38L/H/2.0L/H/2.7L/H
Working Pressure	0.05-0.10MPa	0.1MPa(1.0bar)
Burst Pressure	0.20-0.25MPa	According to the wall thickness
Roll Length	500/1000/2000mm/2500m	2000m
Material	100% Virgin LLDPE	Anti-UV and aging

Product Features

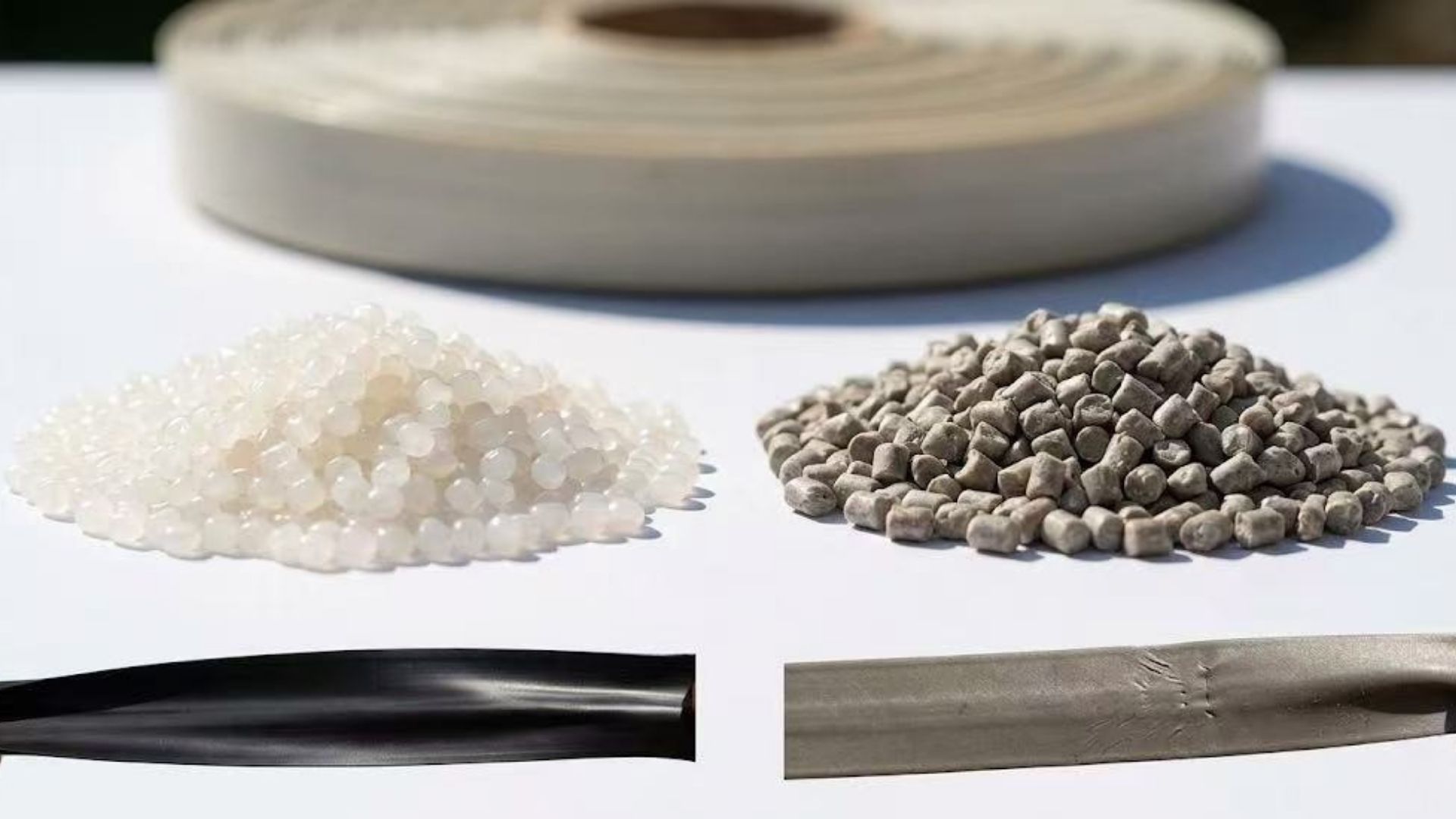

In-depth comparison (new materials & recycled materials)

Not all drip irrigation tapes can withstand the high temperatures of summer. Our products are made from 100% new materials and

have excellent tensile strength and UV resistance. Even under continuous sunlight, they will not become brittle. Compared to recycled materials, their service life is extended by more than 30%.

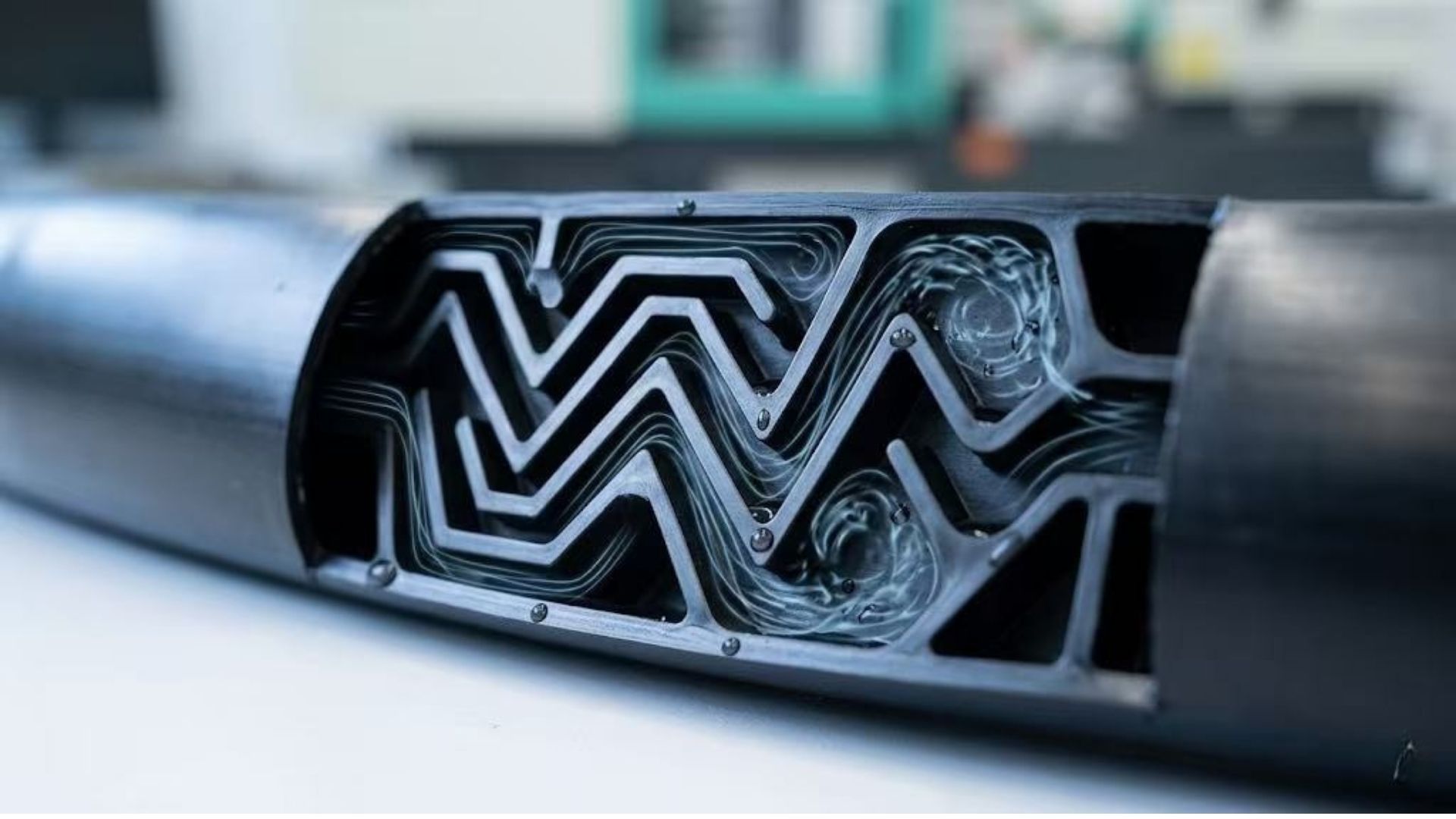

Core Technology: Precise Maze Channel (The Maze Precision)

Uneven water distribution is a killer for crops. We adopt a precise continuous labyrinth flow channel design to create a powerful

turbulent system. This design not only ensures consistent water output at the end of long-distance laying, but also reduces impurity

deposition through self-cleaning of the water flow, effectively preventing blockages.

Why is "without patches" more lightweight? (Installation Advantage)

The roll diameter is compact, the installation is smooth, and the compatibility is strong.

Weighing less but being more powerful. The no-soldering design makes each roll of drip irrigation tape smaller in size and lighter in

weight, which means you can transport more products in the same container space, significantly reducing the transportation cost per

meter. At the same time, during the mechanized laying process, it won't be affected by the soldering blockage, and the installation

speed will increase by 20%.

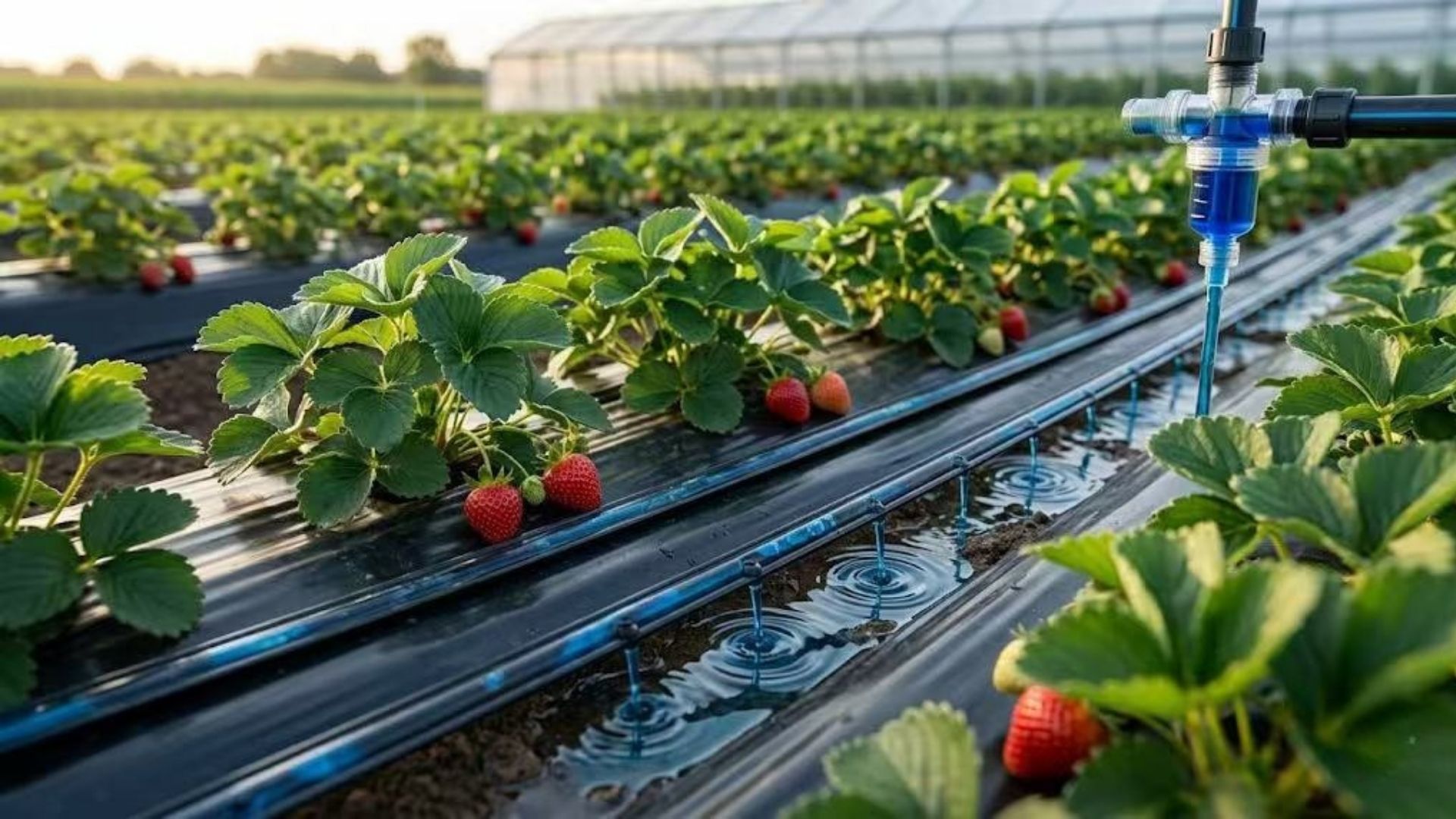

Suitable for strawberries, tomatoes, vegetables, tobacco, etc.

Precise irrigation for every inch of land. Whether you are growing strawberries with shallow root systems or tobacco that requires stable water supply, our drip irrigation tapes can directly deliver water and nutrients to the roots of the crops. It reduces weed growth and        saves water by over 50%.

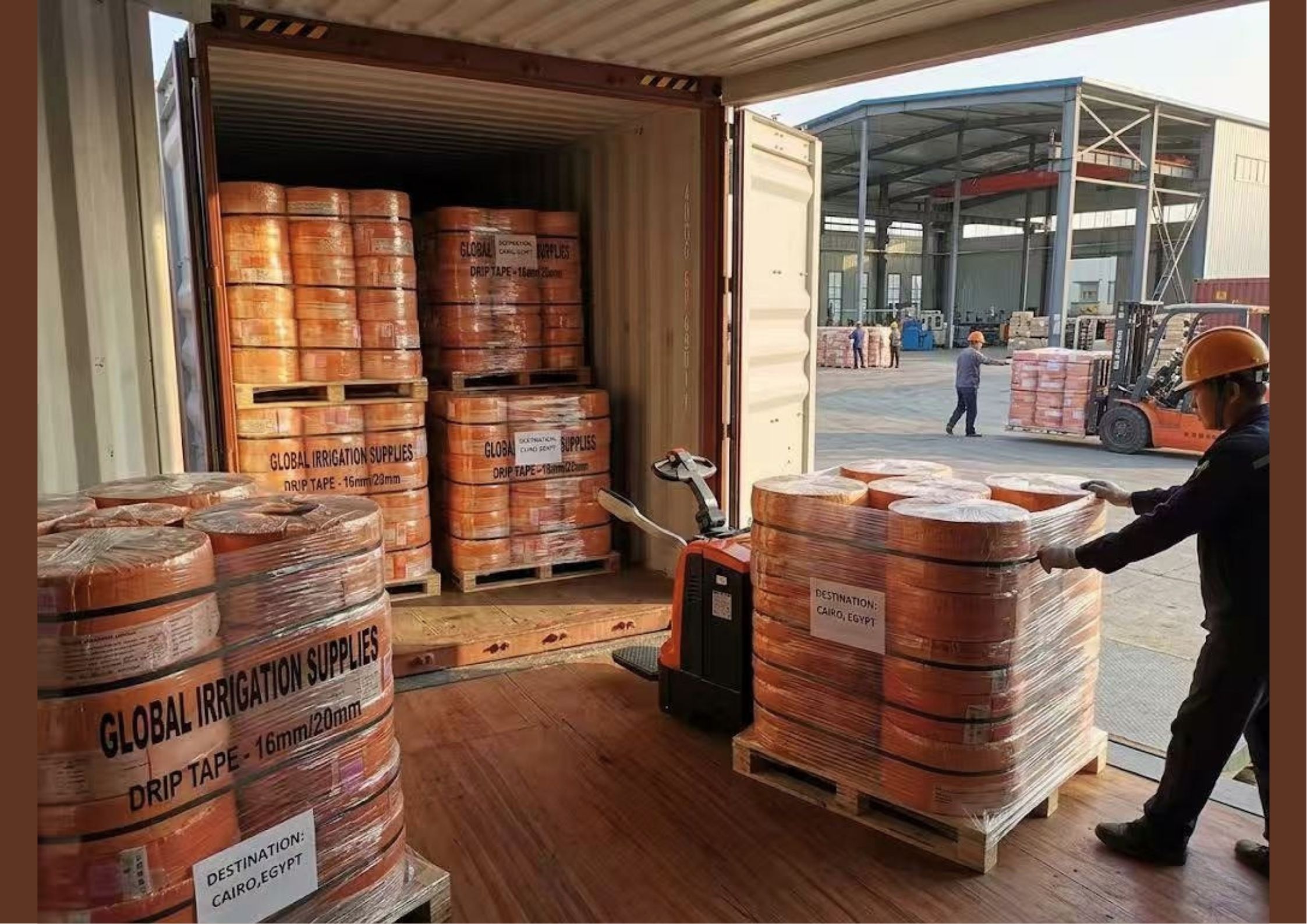

Package and transportation

Quality doesn't stop at the production line. We take extra steps in packaging—using reinforced pallets and moisture-proof wrapping—

to protect our drip tape during international transit. Our organized loading process ensures easy unloading at your destination and

minimizes any risk of deformation. Durable products, professional service.
